At-A-Glance

Type

  • Low headloss, continuous band, through flow fine or coarse screen

Models

  • Low Flow
  • Standard
  • Heavy Duty
  • Super Duty
  • Front Discharge

Grid Opening Range

  • 5mm to 75mm

• Flow Capacity

  • 1 mgd (5 L/s) to 160+ mgd (7,000+ L/s)

 Grid Types

  • Stainless steel laced link
  • Stainless steel wire mesh
  • Stainless steel perforated panel
  • UHMWPE perforated panel

Stainless Steel

  • T304
  • T316
  • Super Duplex
  • High nickel stainless steels

Overview

As a leader in our industry, we are proud to offer design, manufacturing, and service all under one roof. Hydro-Dyne Engineering is the most capable and competent organization to service and maintain your equipment. We have been building and rebuilding screens and screening equipment since 1978 and have the experience and expertise to get the job done right.

Hydro-Dyne is proud to offer

  • On-Site Inspections and Service
  • Service Contracts
  • Extended Warranties
  • Remanufacturing
  • Replacement Parts
  • Options & Upgrades
wastewater screen service
wastewater screen service

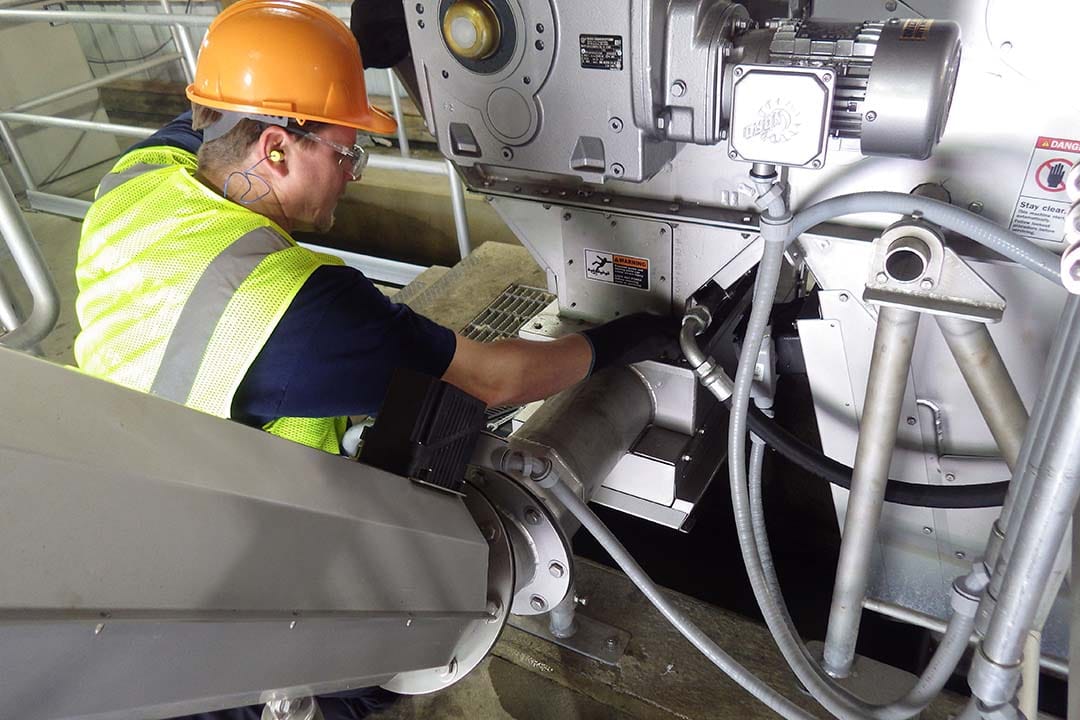

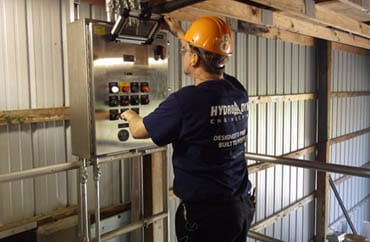

On-site Inspections, Service Contracts & Extended Warranty

Screening, compacting and collecting equipment is vital to your process and the first line of defense for reducing maintenance throughout your plant. Although your equipment is designed to protect and built to perform for many years, the equipment will require regular inspection and maintenance to ensure efficient operation. We are pleased to offer individualized inspection and service options, as well as bi-annual, annual and multi-year service contracts tailored to meet your needs. We also offer an extended warranty plan that will extend your factory warranty to 3 or 5 years.

On-Site Inspections & Service Contracts Include

  • A field service technician on-site at your facility to perform all necessary inspections, adjustments and tests. Our field service technicians are full-time, factory-trained employees that also work on our factory floor.
  • All technician expenses including: travel, meals and lodging.
  • A laboratory oil analysis performed for each gear reducer, when needed, to assess the health of the equipment and reduce unnecessary down-time and maintenance costs.
  • A comprehensive after-service summary report with detailed information on:
    • All work performed
    • Control settings upon arrival and departure
    • Flow and head loss measurements
    • List of any recommended performance improvements
    • Oil analysis (when needed)
    • Description of any recommended repairs
    • Schedule of recommended daily, weekly and monthly maintenance

Extended Warranty Plans

  • Mirror Hydro-Dyne’s Factory Warranty extended out to 3 or 5 years.
  • Factory warranty support available via telephone, email and on-site throughout the entire warranty period.
wastewater screen service

Remanufacturing

We have more than 30 years of experience remanufacturing a wide variety of screening equipment. Your budget does not have to afford a new screen. Our seven-step remanufacturing program will assure you years of exceptional service.

wastewater treatment service
wastewater treatment service

Did you know?

Rebuilding your screen after 10, 15 or even 20 years of service will greatly reduce required maintenance and downtime and save you thousands of dollars in new equipment procurement.

Hydro-Dyne’s seven-step remanufacturing process

Step 1: Evaluation

Wastewater screen service. wastewater treatment serviceUpon arrival at our facility your screen will undergo an initial inspection to verify equipment and condition of screen.

Hydro-Dyne inspects and evaluates:

  • Filter elements: Spacing and gauge
  • Axles: Length and diameter
  • Drive: Motor, gearbox, sprockets and chain
  • Tracks: Wear noted and replacement evaluated
  • Quantities of parts that need replacement
  • Dimensions of all parts

After initial screen inspection, the remanufacturing process begins in multiple areas simultaneously. In order to complete your screen rebuild and return in the shortest possible time we begin manufacturing replacement parts and disassembling the screen.

Step 2: Disassembly and cleaning

wastewater treatment serviceAfter evaluation of the screen, we completely disassemble and thoroughly clean the screen. A parts tumbler is used to remove solids build-up and an acid wash is used to finish elements.

Disassembly and cleaning includes:

  • Removal of motor and gearbox
  • Removal of grid
  • Steam cleaning and pressure washing of the entire surface of screen
  • All pivot shafts, spacers, dogbones and damaged parts are discarded
  • Elements that pass our inspection are put through further cleaning and inspection

Step 3: Manufacture of replacement parts

wastewater treatment serviceGreat care is taken in the evaluation and determination of which parts should be replaced during the remanufacture process. It is not worth jeopardizing your screen, and our reputation, to save a few dollars. Once replacement part quantities and dimensions are known, our machinists begin manufacturing axles, spacers and other parts.

Step 4: Replace tracks and repair frame

wastewater treatment serviceAll tracks are carefully checked for wear and cut out for replacement. Standard practice is to replace with a heavier 1/4″ stainless steel track custom cut and rolled for a precise fit.

Common causes to prematurely worn tracks include:

  • High grit environment
  • Improper adjustment
  • Misadjustment of controls
  • Running too tight or too loose
  • Axles improperly sized by an outside manufacturer

Step 5: Replacement or refurbishment of motor and gearbox

wastewater treatment service

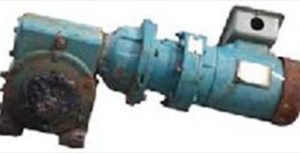

Before

Many of the screens that come back to us have drives that are still operational. Of these drives, most need work. While complete replacement of the motor and gearbox is an option, we also refurbish original equipment if we find them to be in good working order.

wastewater treatment service

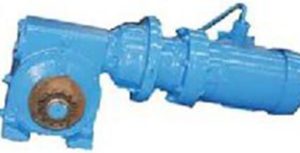

After

Components of this stage includes:

  • Removal and inspection of the drive
  • Bearing and seals are inspected
  • Lubricants are replenished
  • Refurbishment or replacement of the motor and gearbox

Refurbishment of the motor and gearbox includes:

  • Inspection and testing
  • Sandblasting
  • Paint with a two-part epoxy primer
  • Urethane paint coating for ultra-violet protection and prolonged life

Step 6: Reassembly of grid and drive

wastewater treatment serviceAt this stage the screen has been thoroughly cleaned and completely disassembled. Tracks have been removed and new tracks have been welded in place. The motor and gearbox have been refurbished or replaced. All replacement parts have been fabricated and the grid is laced with all new spacers, axles, dogbones, closure links, and hardware. After the grid is laced, the drive sprockets are aligned, inserted and the side panel is attached. The screen has been completely remanufactured and is ready for final adjustments and testing before shipping.

wastewater treatment service













Step 7: Factory Acceptance Testing

wastewater treatment serviceWe take great pride in our remanufacturing efficiency, as it allows us ample time to make final adjustments while the screen is being tested. Each screen is run for hours to ensure the equipment is properly aligned and any issues have been addressed. Our extensive testing and fine tuning dramatically reduces on-site downtime.

Replacement Parts, Options and Upgrades

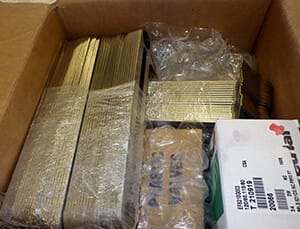

  • We stock most fast-moving replacement parts, wear parts and consumables.
  • We expedite ETO (engineered to order) parts through our customized system.
  • We offer a large selection of optional equipment including: wash modules, freeze protection, baggers, and rust inhibitors.
  • We can upgrade your existing equipment to today’s state-of-the-art technology to increase reliability and efficiency.
Wastewater screen service

Project Profiles

We have remanufactured hundreds of water and wastewater screens and screening equipment. To learn more about our experience and expertise, we invite you to browse a few of our profiles on remanufacturing projects.
