Packaged Headworks Solutions, Part 3: Benefits of a Single Tank Packaged Headworks Design

Preliminary wastewater treatment requires a two-step process: screening to remove large debris and trash and grit removal to eliminate the smaller, heavy sandy particles from the influent.


While these are typically two separate processes in many wastewater treatment facilities, they can be combined into a single packaged headworks using only one tank, which can yield several substantial benefits, such as:

  • Lowering the approach velocity for improved grit settling to a basin under the screening exit.
  • Locating the grit tank with a center inlet and radial exit provides the optimal configuration to prevent short-circuiting.
  • Ability to use a high-capture screen technology for improved debris and rag removal.
  • Reduced overall footprint by locating the screen within the grit tank.

In previous blogs, we discussed the technologies typically involved in packaged headworks designs, followed by several packaged headworks designs that combine these technologies. In this blog, we will dive into the technical reasons why a single-tank packaged headworks design might provide the optimal solution for many facilities.

Approach velocity and grit settling

The channel approach velocity of water flow to the front of the screen is an important factor in the design of a screening system because grit that can accumulate at the foot of the screen accelerates wear on moving surfaces that come in contact with it. For this reason, a minimum approach velocity of 0.9-1.5 ft/s is recommended to avoid grit settling. Figure 1 shows a typical channel design showing the approach velocity to a wastewater center-flow band screen.

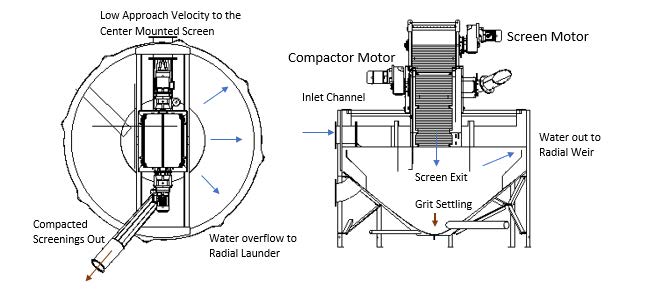

A low approach velocity can be utilized to enhance grit removal if the grit tank is located under the screen. In Figure 2, a center flow screening system is located in the center of a grit tank, so both preliminary processes are combined into one unit.

The screening system shown in Figure 2 is designed with an exit velocity to promote grit settling in the cone bottom tank. Typically, in a channel-mounted design, the wastewater flows to the sides of the screen (as shown in Figure 1), and the channel floor limits any flow downward. The combined design in figure 2 presents a configuration in which the bottom of the screen provides contact area for incoming flow to exit downward for best grit settling.

Minimized design for grit removal

Most grit settling tanks include a motor-driven propeller or impeller. However, computational fluid dynamics and field studies indicate that these devices are superficial and do not aid in the settling process.

Instead, the cone bottom grit tank design uses gravity rather than centrifugal forces for grit setting. Effective settling is achieved by having surface overflow rates within acceptable design limits and yields a removal of at least 95% of particles 300 microns and larger (subject to grit loading, organic content, and flow variation at the application site).

A minimized grit tank design without a stirring device provides significant benefits, such as:

  • Ease in maintenance – No gearbox or stirring device to lubricate or fix.
  • Lower cost – Fewer components of stainless-steel construction are needed.
  • Radial design – The center inlet allows a radial exit design to maximize particle travel.
  • Optimized particle removal – The radial exit is the lowest velocity design possible and maximizes particle settling.

Improved settling characteristics of a single tank packaged headworks design

An optimized packaged headworks design with a center flow screen mounted in the center of a grit settling tank provides the lowest expected velocity profile on both the inlet and outlet to enhance grit settling. Grit slurry accumulates at the bottom of the cone tank and can be removed from the tank using a pump or airlift configuration. A cyclone removes most of the water from the slurry mixture, then settles in a classifier for transport to a solid’s dumpster or bag.

The optimal design of a single tank packaged headworks design discussed here includes the following factors concerning grit settling and removal:

  • Flow inlet into the middle depth of the grit tank prevents short-circuiting to the outlet. A circular baffle on the screen exit directs flow below the tank surface level.
  • A low-velocity inlet structure provides a smooth transition of flow to the tank.
  • A baffle around the screen exit also helps reduce turbulence in the grit settling tank.
  • A radial flow outlet from the grit tank provides the longest path and lowest outlet velocity possible.


The center flow band screen has been independently tested to produce the highest capture rates in the industry. This design can pair with a cone bottom settling tank in a configuration optimized for grit settling. This includes a low velocity center feed to the grit tank from the screen exit. Center feed is integrated with a radial exit, with minimized turbulence for screened and de-gritted effluent. The screening and grit removal functions work together to produce the best quality water in a small-packaged headworks. This design is well-suited to provide the best capture screening equipment with grit removal technology coupled together in a small footprint for flowrates less than 2.5 MGD (110 L/s).
